The Subaru boxer is the engine enthusiasts forgive almost everything for. Pistons punch outward from either side of the crankshaft, the centre of gravity sits low, and the whole thing rumbles with a personality most modern engines have lost. But character comes at a peculiar cost. Four-cylinder boxers cannot fully cancel their own rocking motion, the flat layout is wide enough to complicate packaging, and the spinning parts inside still add shake of their own. Subaru’s latest patent goes after that last one. The idea is a hollow camshaft with a smaller weighted shaft tucked inside, locked in place at lower revs and released at higher ones. Smoother running, in short, with less reliance on bulky counterweights.
How The Locking Weight Cancels The Wobble

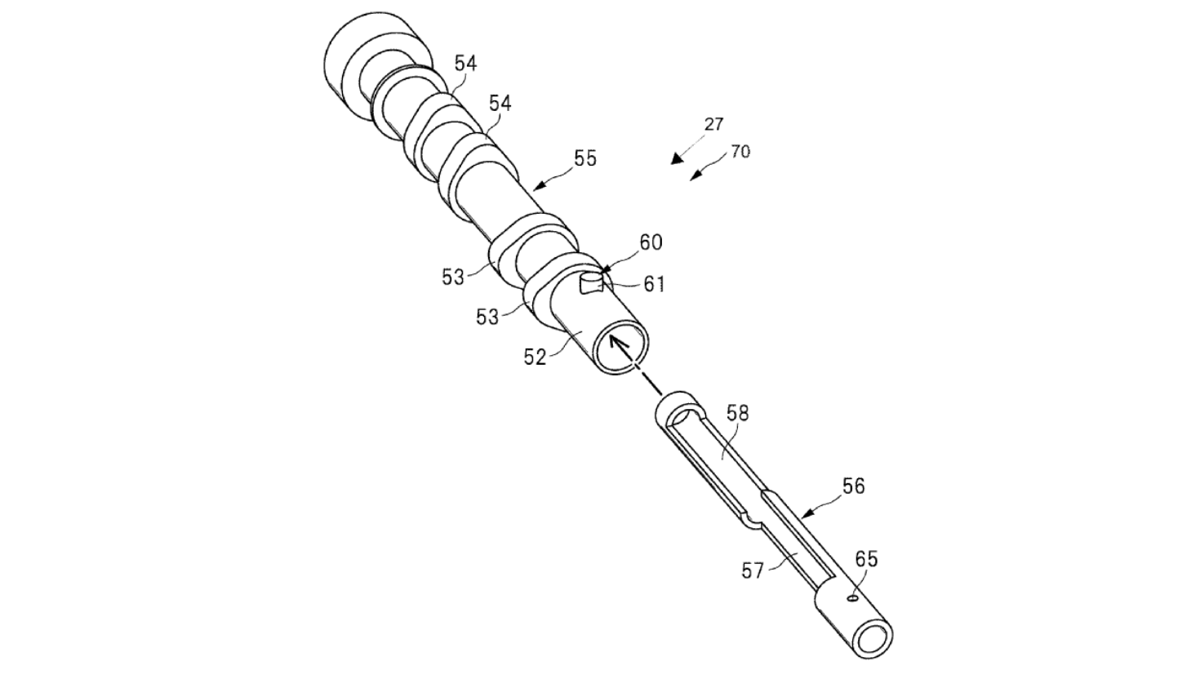

Camshaft lobes are lopsided by design, so the shaft carries a built-in imbalance that tries to shake the engine as it turns. The filed patent describes a hollow shaft with a weighted inner shaft in it. At lower speeds, a pin locks the two together, placing the weight opposite the imbalance so the forces cancel. Once revs climb, the pin releases and the two shafts spin independently. That lowers the moving mass and pushes the natural frequency of the assembly above anything the engine can actually reach, which keeps resonance out of the party. A lighter setup also eases the load on the timing chain or belt. That should result in a smoother, quieter engine.
U.S Patents Office
What It Means Beyond The Patent Drawing
This is still a patent, with eight Subaru engineers named on it and no confirmed car attached. Subaru has been busy this year, from turbine range extenders to a mystery EV with performance hints, so a patent alone is a hint rather than a roadmap. The drawings use a four-cylinder boxer, though the filing leaves room for other engine layouts.
Subaru
Boxers already cancel much of their own vibration and need no balance shaft, so this patent could add polish rather than reinventing it. Still, it shows Subaru is willing to keep sweating the small stuff on an engine layout it has loved for decades. For drivers, the best case is a boxer engine that keeps its charm and loses its shudder.
